Item Description

The new generation of higher power 275 nm LEDs are now available (35-50% higher).

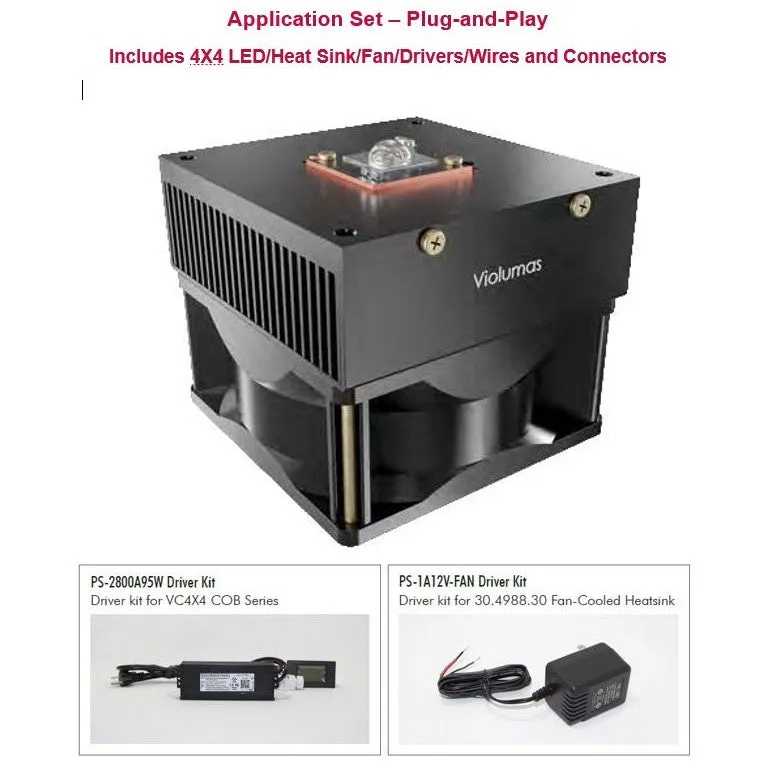

Plug-and-Play UV LED Application Set - Includes M4X4L9 integrated module (LED array and heat sink) and driver kits (includes power supplies, plug, connector and wires).   No need to search for and purchase separate components.  Everything is in the box to quickly be up and running with instructions. Optional dimming is available which includes driver with dimmer dial, and digital panel meter.

Select 110V or 220V and optional dimming in pull down box above.

This set (SET-275-4X4-MED-110V or -220V) contains the items below.  See the Tech Specs tab and Download PDF tab above for the specification and use guides for the items in the sets:

• M4X4L9-275-V1 Integrated Module - 275 nm 4X4 Array COB  (1650 mW, 90 deg. output) mounted onto a matched heat sink with fan.
• LED Driver kit for 110V or 220V - PS-2800A95W-ND-110 or 220  with plug, connectors and wires, or for optional dimming PS-2800A95W-D-110 or 220 with dimmer dial, and digital panel meter.
• Fan Driver Kit for heat sink fan PS-1A12V-FAN

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our  or at 617-566-3821

Items in Set: (SET-275-4X4-110V or -220V)	Item Part Number
Integrated M4X4L9-275-V1 Module	VC4X4C48L9-275-V1  1650 mW, 90 deg. output mounted onto the 30.4988.30 Heat Sink with fan
LED Driver kit for 110V (220V)	PS‐2800A95W‐ND-110V (220V) with plug, connectors and wires, or for optional dimming PS-2800A95W-D-110 or 220 with dimmer dial, and digital panel meter.
Driver kit for Fan	PS‐1A12V-FAN with plug and wires
